AGL Part Number
|
Outer Diameter
|
Yield Load
|
Ultimate Load
|
Unit Weight (/ft)
|

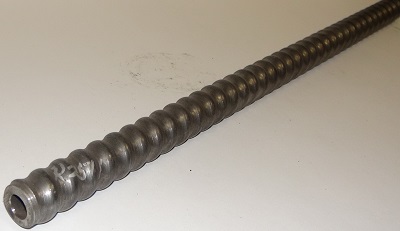

R25N
|
1"
(25mm)
|
33.8 Kips (150kN)
|
45 Kips (200kN)
|
1.54 lbs (0.71 kg)
|
R32N
|
1-1/4"
(32mm)
|
51.8 Kips (230kN)
|
63 Kips (280kN)
|
2.28 lbs (1.04 kg)
|
R32S
|
1-1/4" (32mm)
|
63 Kips (280kN)
|
81 Kips (360kN)
|
2.75 lbs (1.25 kg)
|

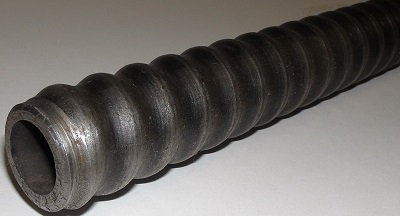

R38N
|
1.5" (38mm)
|
90 Kips (400kN)
|
112.6 Kips (500kN)
|
4.02 lbs (1.83 kg)
|
R51L
|
2" (51mm)
|
101.2 Kips (450kN)
|
123.6 Kips (550kN)
|
4.7 lbs (2.13 kg)
|
R51N
|
2" (51mm)
|
141.6 Kips (630kN)
|
180 Kips (800kN)
|
5.63 lbs (2.56 kg)
|
T76N
|
3" (76mm)
|
270 Kips (1200kN)
|
360 Kips (1600kN)
|
10.06 lbs
(4.57 kg)
|
T76S
|
3" (76mm)
|
338 Kips (1500kN)
|
428 Kips (1900kN)
|
13.2 lbs (6.01 kg)
|
