AGL Manufacturing carries a full range of EMD parts for 567, 645, 710 engine models. We have a large inventory of EMD parts in our USA and Canada warehouses to meet our customers’ immediate production need.

Our featured products includes but not limited to, Clutch Assemblies, Cam Plates, Shroud Rings, Scroll Turbine, Inlets, Gears, Carrier Shafts, Compressor Seals, Turbine Inlet Supports, Idler Gear, Gear Set, Carrier Bearing, Turbine Inlet Duct.

Part Number Description Other
8028766 EMD GASKET, #7500 1/64"" O.S. TRIP HOUSING REPLACEMENT, OEM GRADE
8029034 EMD GASKET, #6101 .006"" LUBE OIL SYSTEM REPLACEMENT, OEM GRADE
8029498 EMD GASKET, #7500 1/64"" LUBE OIL SYSTEM REPLACEMENT, OEM GRADE
8049496 EMD GASKET #7500 1/64"" O.S. TRIP HOUSING
8069445 EMD GASKET #7500 1/32"" LUBE OIL SYSTEM
8071176 EMD BUSHING CAMSHAFT BEARING
8083325 EMD WASHER COPPER AIR COMPRESSOR
8083598 EMD GASKET #8300 1/8""AIR COMPRESSOR REPLACEMENT
8084468 EMD STUB SHAFT
8097592 EMD GASKET, LATHE CUT, COOLING SYSTEM PIPING REPLACEMENT
8116738 EMD WIRE LOCK CLUTCH WIRE, 10M
8135330 EMD THRUST WASHER
8136114 EMD BEARING CON ROD LOWER
8143446 EMD O-RING, BOTTOM GROOVE
8155560 EMD DOWEL PIN
8167060 EMD GASKET #7500 1/64"" LUBE OIL SYSTEM
8187010 EMD SEAL, CRANKCASE TO OIL PAN 16 CYLINDER ENGINE REPLACEMENT, OEM GRADE
8198078 EMD O-RING, OIL PAN ASSEMBLY REPLACEMENT, OEM GRADE
8237900 EMD BEARING HALF CAMSHAFT
8253825 EMD BEARING HALF CAMSHAFT
8255258 EMD SEAL, LATHE CUT AIR COMPRESSOR
8261067 EMD NUT .. IMPELLERRETAINER - 1-3/8-12 HEX.
8261074 EMD NUT HEX 3/8-24
8261086 EMD BEARING
8261090 EMD WASHER
8261098 EMD CARRIER SHAFT SPACER 645
8261210 EMD RING GEAR, PLANETARY
8261240 EMD SEAL IMPELLER MODEL 567
8261267 EMD BOLT HEX HEAD
8261280 EMD IMPELLER SEAL GASKET
8261284 EMD IMPELLER SPACER 645
8261285 EMD PLATE
8261303 EMD LOCK PLATES.
8262754 EMD GASKET, #6101 .006"" LUBE OIL SCAVENGING PUMP REPLACEMENT, OEM GRADE
8268731 EMD GASKET, #7500 1/32""AIR COMPRESSOR REPLACEMENT
8280352 EMD O-RING, LUBE OIL PIPING REPLACEMENT, OEM GRADE
8283045 EMD SLEEVE, BUSHING IDLER GEAR
8283431 EMD TAPER DOWEL.
8283432 EMD TAPER DOWEL.
8283433 EMD PIN DRIVE .015 O/S
8288418 EMD DOWEL LOCATING
8288955 EMD O-RING, LUBE OIL SYSTEM REPLACEMENT, OEM GRADE
8289031 EMD EXHAUST DUCT RETAINING RING
8289113 EMD BOLT SEAL RING CARRIER 3/8 X 7/8, MDL 567, 645
8289127 EMD NUT, HIGH TEMPERATURE, 3/8-24 HEX, SILVER PLATED
8291349 EMD GASKET
8294874 EMD SEAL
8295574 EMD EXHAUST DIFFUSER
8305815 EMD O-RING
8306119 EMD COMPRESSOR LAB SEAL 567
8306238 EMD GASKET KIT, AFTERCOOLER CHANGEOUT
8306501 EMD SEAL, LATHE CUTE, FUEL OIL SYSTEM REPLACEMENT
8306950 EMD SHAFT, PLANETARY GEAR
8306968 EMD TURBINE WHEEL ASSEMBLY
8307494 EMD GEAR SET PLANETARY(SET OF 3)
8309726 EMD IDLER GEAR SHAFT567
8310542 EMD BEARING ASSY
8313126 EMD TURBINE BEARING SUPPORT
8313151 EMD DOWEL PIN
8313152 EMD DOWEL PIN
8313153 EMD DOWEL PIN
8313154 EMD DOWEL PIN
8315689 EMD CUP SPRING
8322023 EMD GASKET
8326359 EMD DOWEL PIN
8326360 EMD DOWEL PIN
8326361 EMD DOWEL PIN
8329247 EMD SEAL
8329276 EMD DOWEL
8329488 EMD WASHER THRUST HEAT DAM 567-645
8329489 EMD SLEEVE, COMPRESSOR JOURNAL

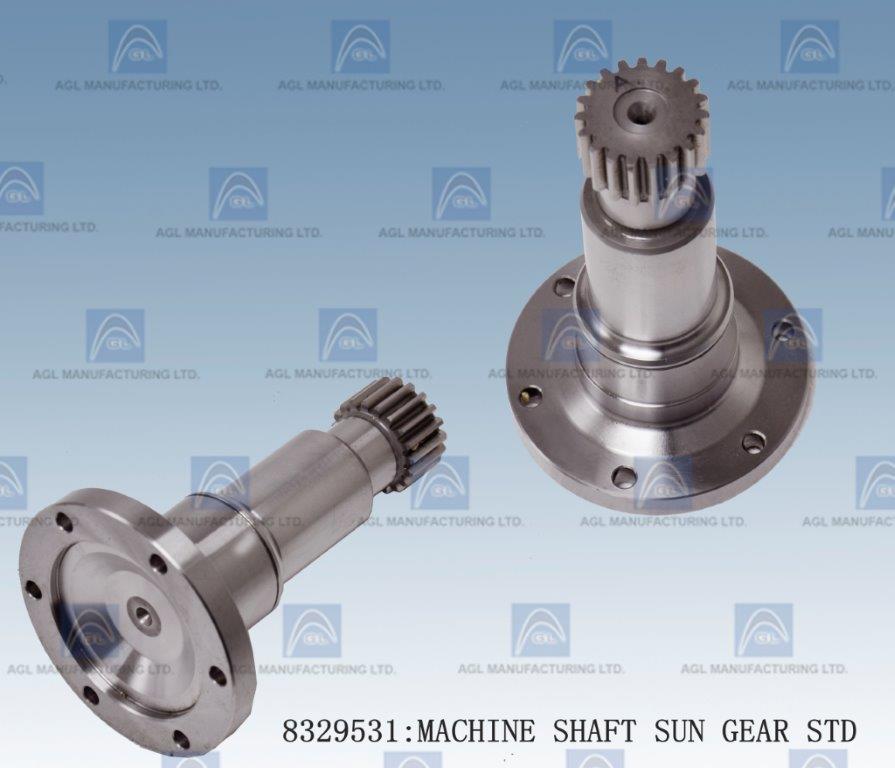

8329531 EMD MACHINE SHAFT SUN GEAR STD
8337614 EMD SHAFT CARRIER STD
8337615 EMD CARRIER SHAFT ASSEMBLY EMD645

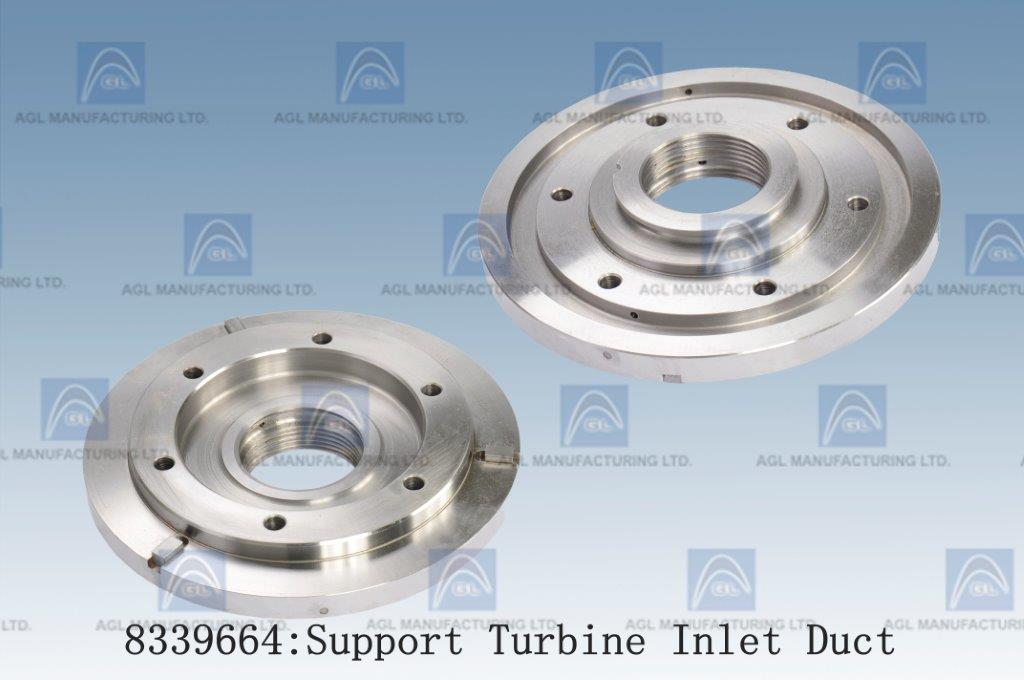

8339664 EMD SUPPORT TURBINE INLET DUCT
8341192 EMD BEARING INSERT (STRAIGHT GROOVE)
8343161 EMD O-RING, SOAKBACK FILTER ASSEMBLY
8347939 EMD WASHER ANTI THRUST EMD645
8350036 EMD BLADE, 5 SERRATION
8350037 EMD BLADE, 5 SERRATION
8350038 EMD BLADE, 5 SERRATION
8350039 EMD BLADE, 5 SERRATION
8353348 EMD TAPER DOWEL.
8354866 EMD COMPOUND
8356239 EMD GASKET #7500 1/16"" AIR BOX DRAIN
8358383 EMD SPRING CLUTCH

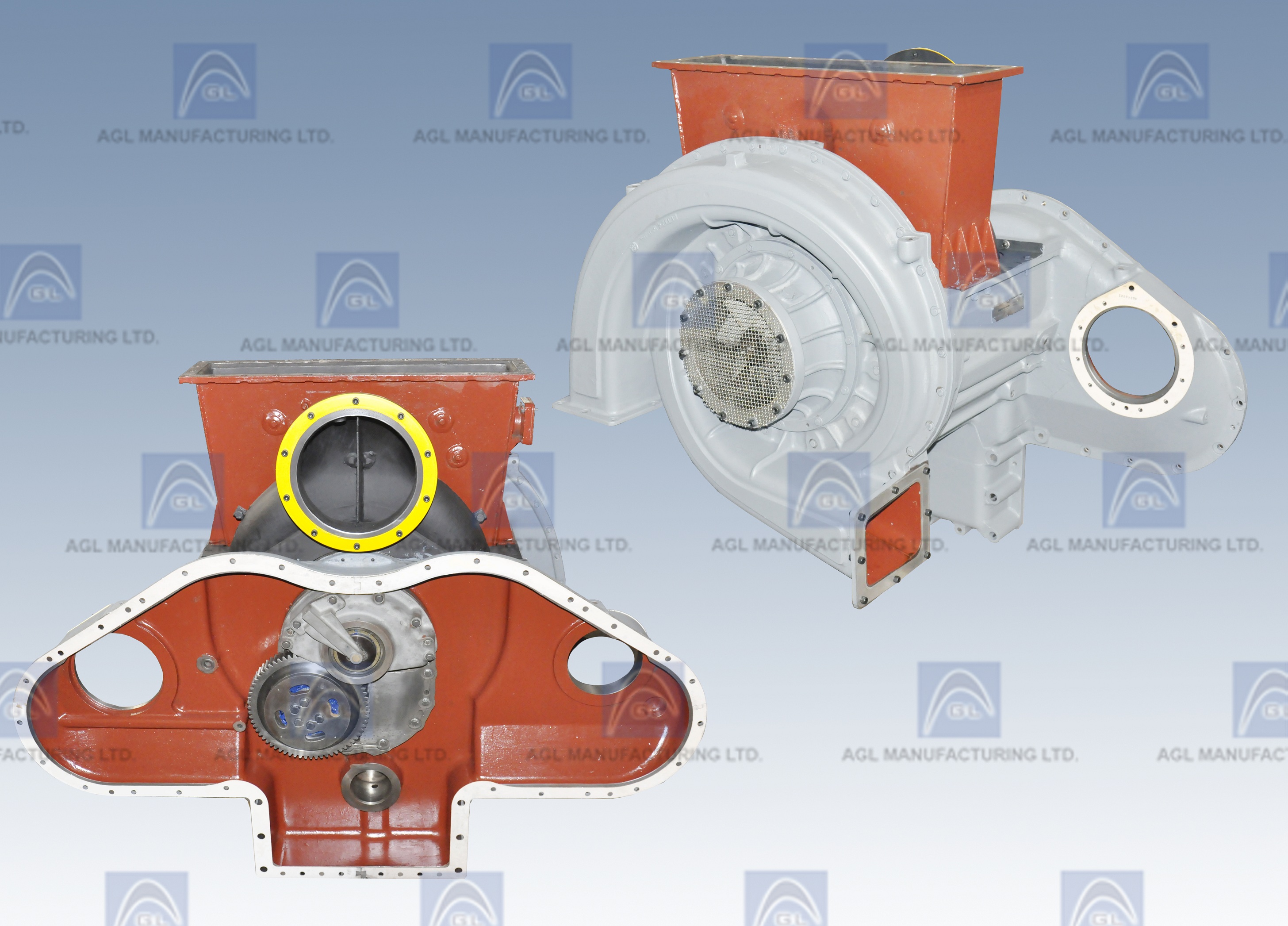

8358500 EMD TURBOCHARGER, EMD 16-645E3

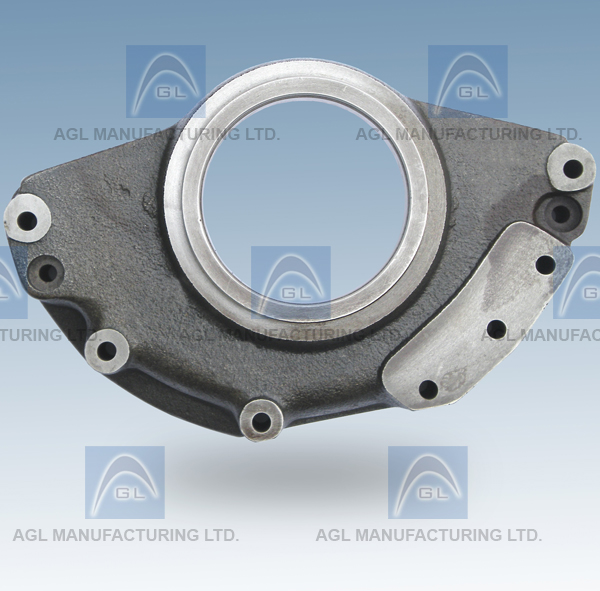

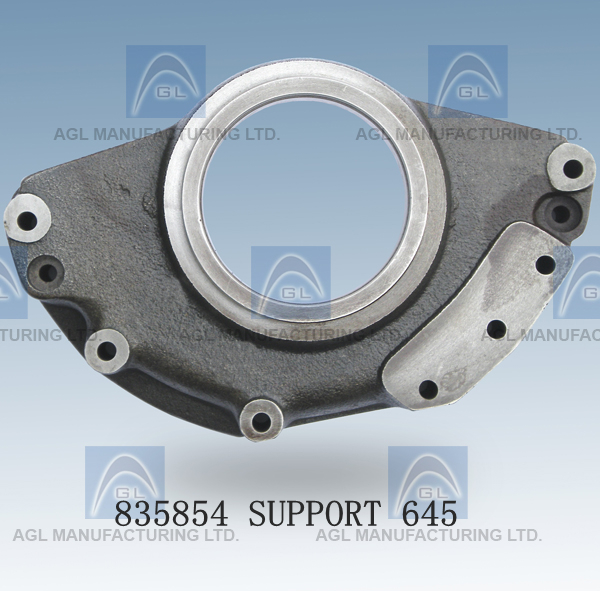

8358541 EMD SUPPORT 645
8358542 EMD SUPPORT IDLER GEAR EMD645
8358547 EMD TURBINE WHEEL, 47 SLOTS
8358548 EMD BLADE FOR TURBINE WHEEL 8358547, 5 SERRATION
8358549 EMD DISC ROTOR CLASS
8358561 EMD IMPELLER COVER
8358562 EMD SEAL IMPELLER MODEL 645
8358564 EMD LAB SEAL COMPRESSOR BEARING

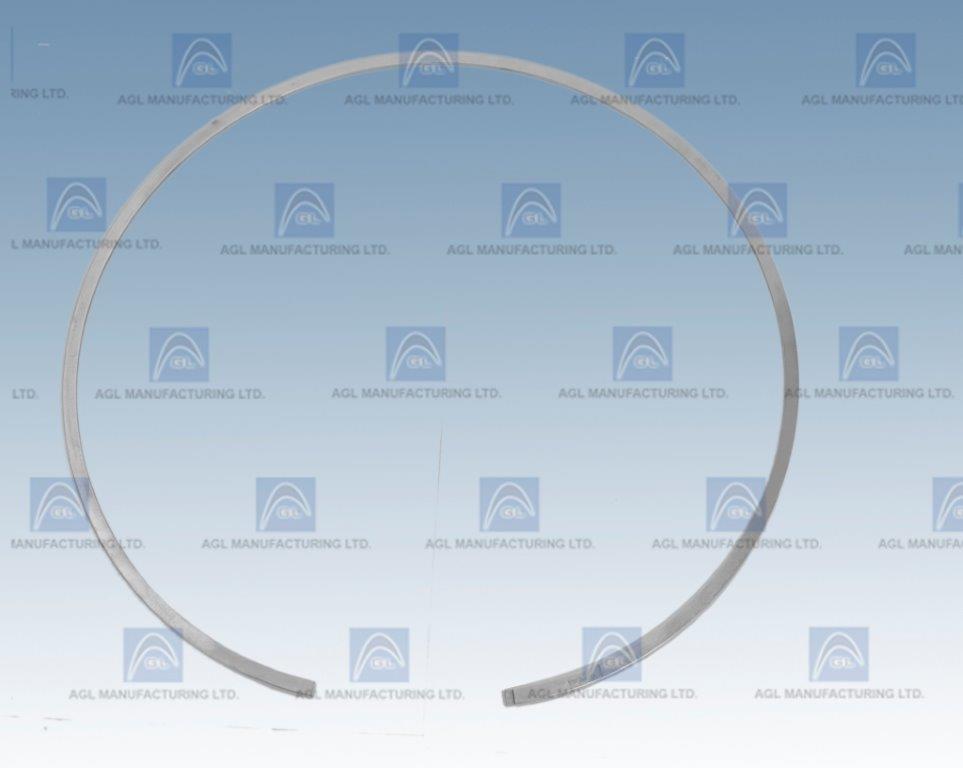

8358565 EMD GASKET
8358566 EMD BOLT
8358571 EMD SPACER
8358574 EMD PLATE...RETAINER
8358575 EMD 645 GEAR, CARRIER DRIVE (30 TOOTH)

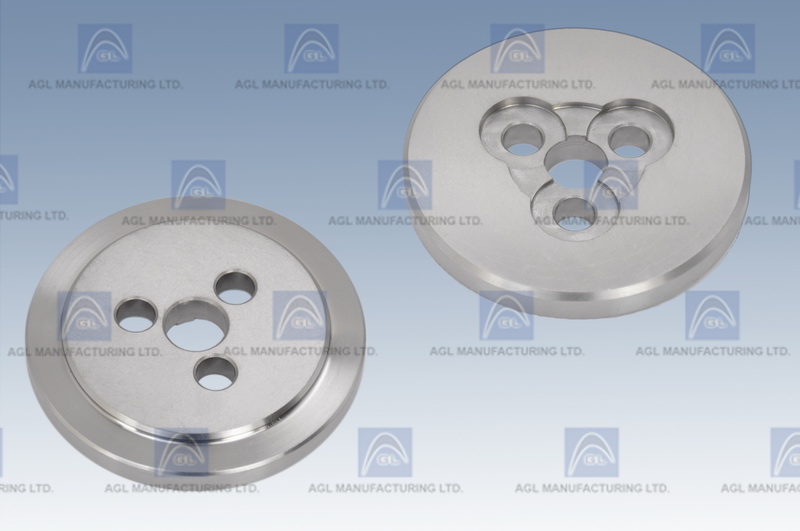

8358576 EMD RETAINER
8358578 EMD GEAR IDLER 18:1 68 TOOTH
8358582 EMD SPACER
8359370 EMD TABLOCK 25 DEG 645
8361565 EMD BEARING INSERT (INCLINE GROOVE)
8363016 EMD RETAINER
8363019 EMD NOZZLE RING 29.4 INCHES
8363538 EMD SCROLL TURBINE INLET 645
8363847 EMD COVER PLATE,IDLER GEAR SUPPORT.
8366272 EMD CLUTCH ROLLER 645

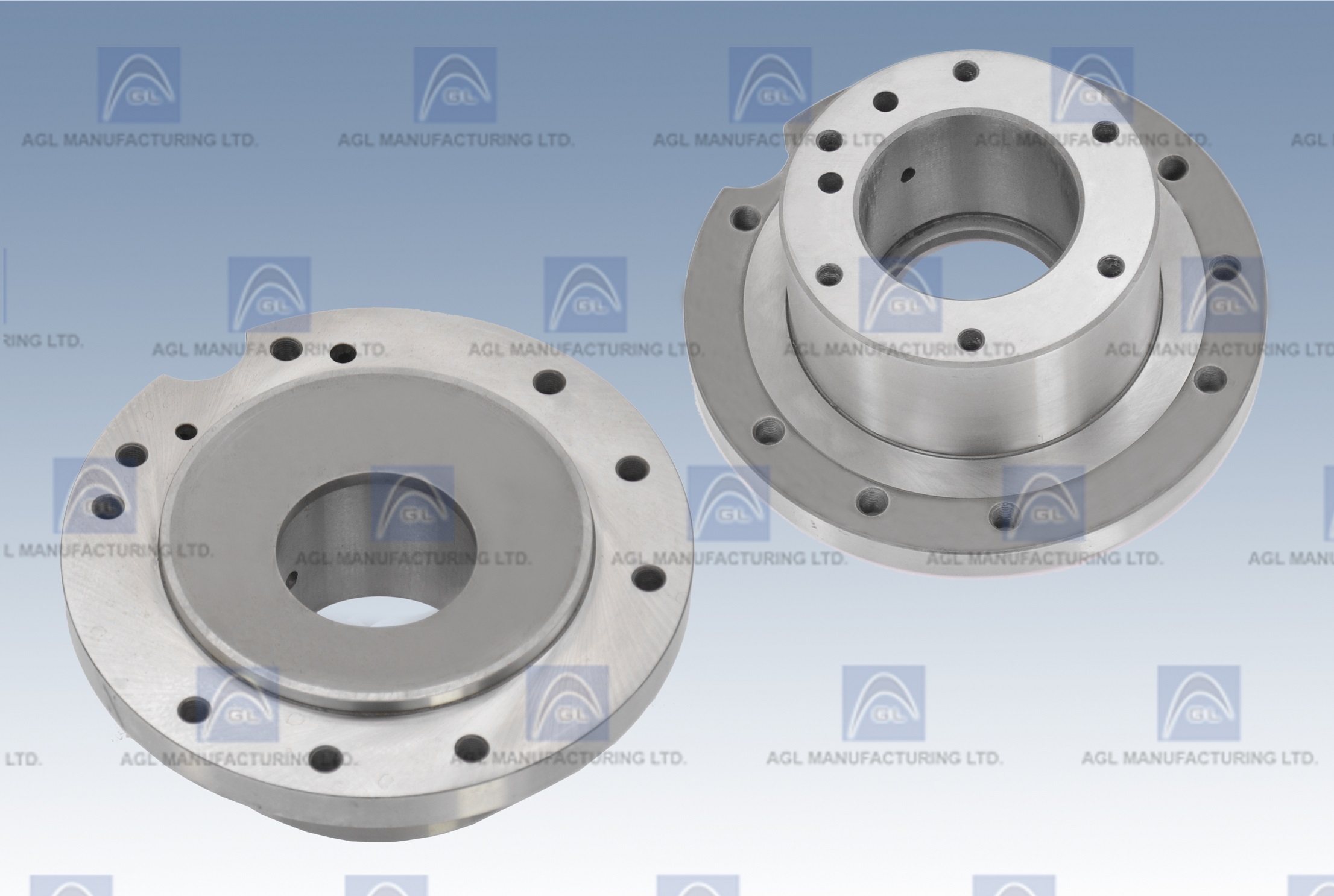

8366274 EMD SUPPORT CLUTCH STD, REPLACED BY 9585247
8366277 EMD RETAINER OVER CLUTCH STD 645/567
8366280 EMD PIN CLUTCH
8366281 EMD CLUTCH BEARING SUPPORT 645
8366705 EMD CLUTCH DOWEL ASSY ROLLER STD.
8367033 EMD PIN DRIVE CLUTCH
8367100 EMD WASHER THRUST
8380046 EMD IMPELLER RETAINER
8391676 EMD BLADE, 5 SERRATIONS, TIP SHAKE DIM-.021 TO .040
8391677 EMD BLADE, 5 SERRATIONS, TIP SHAKE DIM-.005 TO .020
8391681 EMD CLUTCH ASSEMBLY, STD
8405517 EMD NOZZLE RING 645 30.23 SQ IN
8407914 EMD IMPELLER COVER
8410283 EMD TURBOCHARGER

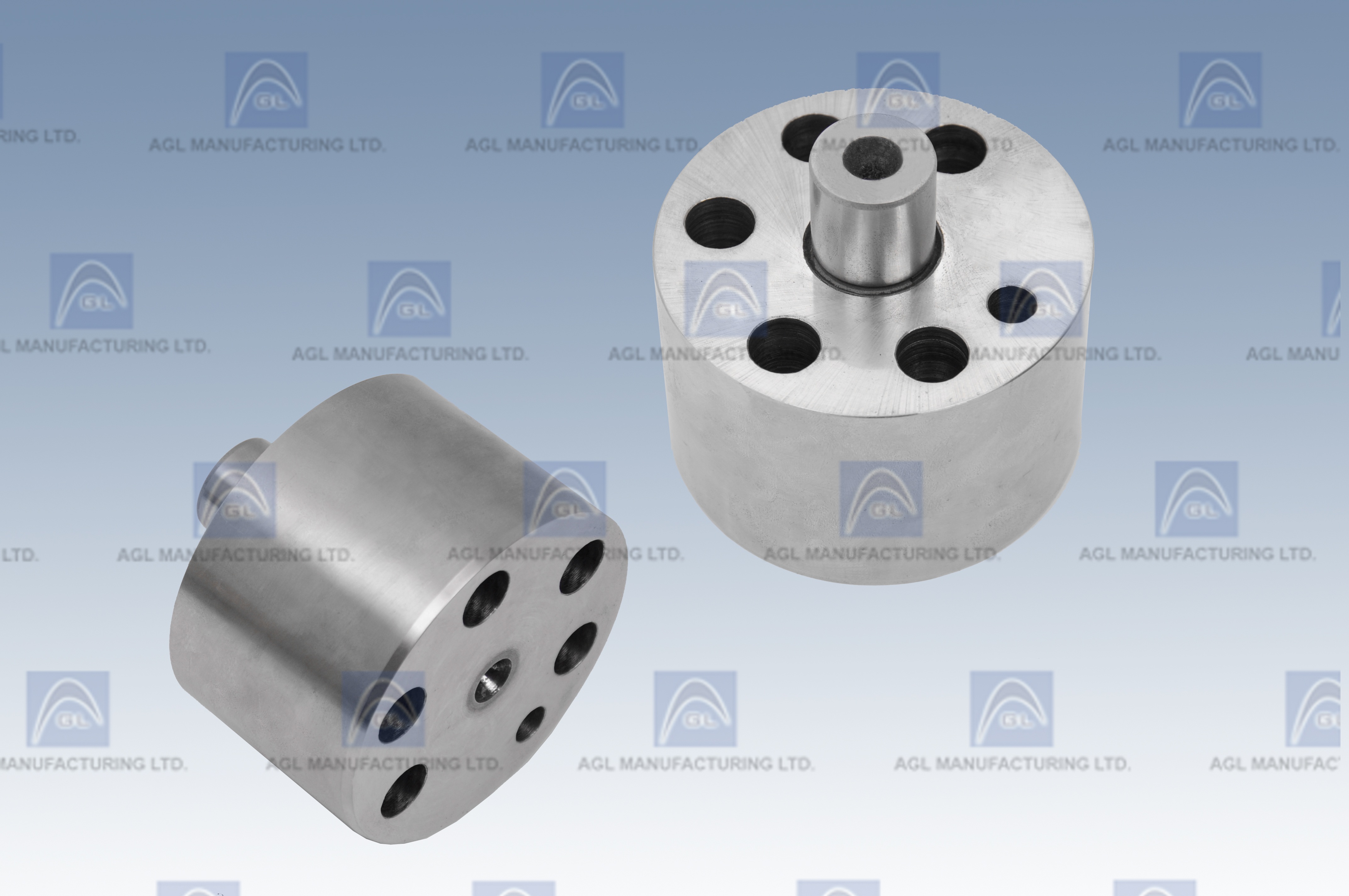

8411281 EMD IDLER SHAFT 645
8416706 EMD SHROUD RING
8416930 EMD GEAR RING
8418959 EMD GASKET #7500 1/32"" ALTERNATOR
8421758 EMD BEARING TE
8427111 EMD GASKET KIT CYL HEAD
8432575 EMD CAM PLATE 645
8433272 EMD O-RING, WATER MANIFOLD ASSEMBLY REPLACEMENT, OEM GRADE (ALSO: 8347415)
8442226 EMD BEARING INSERT (CROSS GROOVE)
8448549 EMD SHROUD RING
8448776 EMD DISC ROTOR CLASS
8460205 EMD METAL GASKET TURBOCHARGER
8460229 EMD BOLT MAIN HOUSING
8474956 EMD EXHAUST DIFFUSER 645
8482491 EMD WASHER
8483643 EMD COVER ASSEMBLY
8491705 EMD SHAFT CARRIER HI-CAP
8491706 EMD BEARING PLANETARY
8491707 EMD RING GEAR HC
8491710 EMD GEAR SHAFT
8491712 EMD CLUTCH DOWELING ASSEMBLY HC

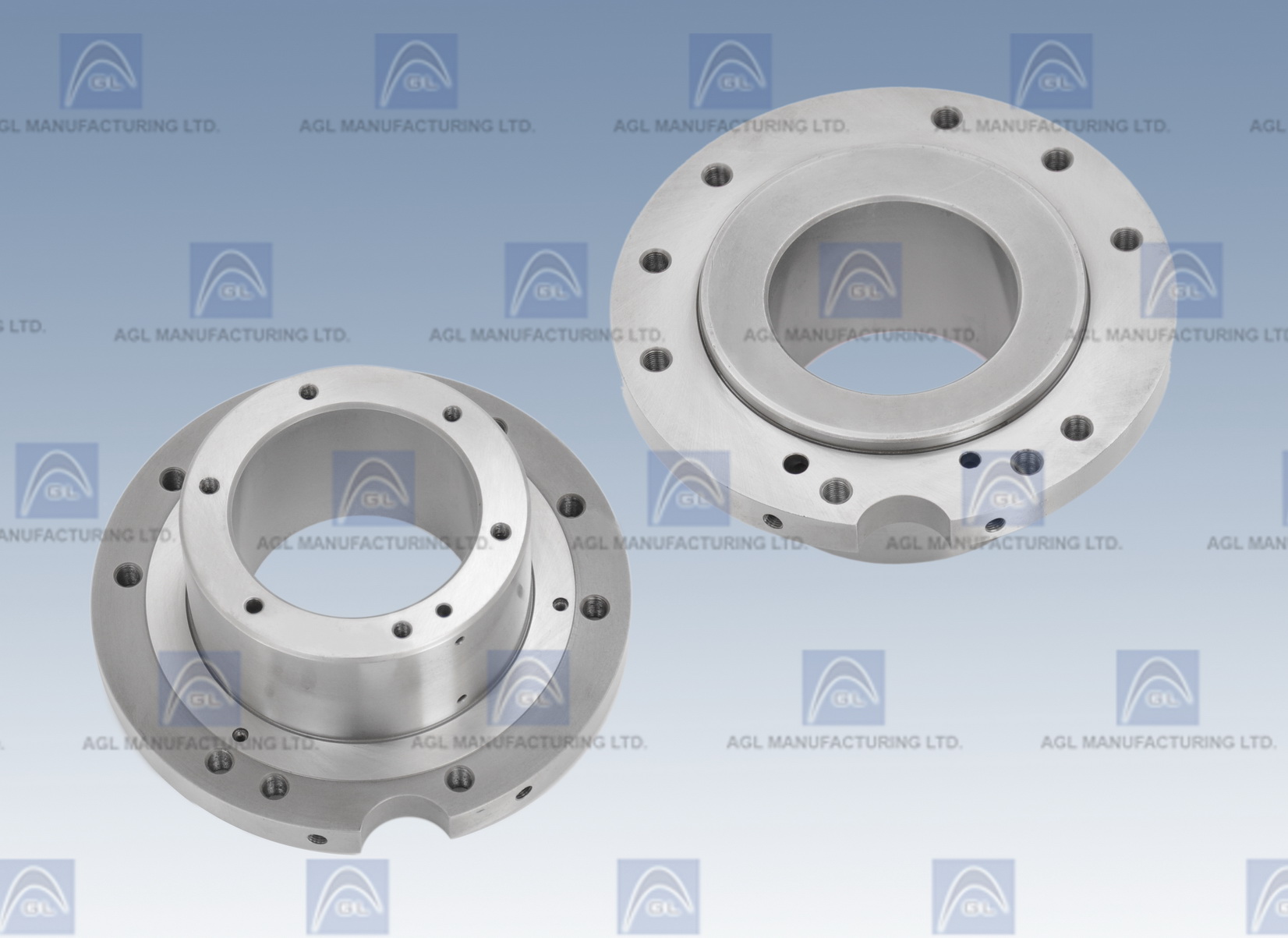

8491716 EMD CLUTCH SUPPORT HC
8491718 EMD THRUST WASHER RETAINER
8491721 EMD INSERT
8491722 EMD SUPPORT TURBINE INLET
9087620 EMD IMPELLER COVER
9088031 EMD SHROUD RING
9095686 EMD O-RING, OVERSPEED TRIP HOUSING REPLACEMENT, OEM GRADE
9097557 EMD CLUTCH ASSEMBLY, HC, WITH RING GEAR 8491707
9314918 EMD GASKET #7500 1/16"" LUBE OIL STRAINER
9315446 EMD O-RING, LUBE OIL STRAINER REPLACEMENT, OEM GRADE
9319935 EMD SEAL RING CARRIER 645 STD
9319937 EMD SHROUD RING
9319941 EMD SHAFT IDLER GEAR
9320844 EMD GASKET KIT, CYLINDER LINER INSTALLATION (567)
9330367 EMD DUCT ASSEMBLY EXHAUST
9338191 EMD TURBINE WHEEL
9338192 EMD 645 TURBINE WHEEL
9338194 EMD TURBOCHARGER
9414864 EMD RING RETAINING
9416636 EMD ROLLER BRG CARRIER GEAR SUPPORT
9433120 EMD BEARING BALL-IDLER GEAR
9502409 EMD TUBE EDUCTOR INNER
9502412 EMD TUBE EDUCTOR OUTER
9503272 EMD WASHER THRUST HEAT DAM
9503273 EMD SHAFT SUN GEAR HC-SMALL FLG, EMD645
9503274 EMD COMPRESSOR BEARING LABYRINTH S
9503854 EMD BEARING COMPRESSOR, JOURNAL SP THRUST
9505486 EMD SHAFT ASSEMBLY CARRIER
9507213 EMD BLADE, 5 SERRATION
9507684 EMD SEAL PARKER
9518645 EMD BLADE..TURBINE, TIP SHAKE DIM,-.010 TO.030,25 DEG
9518646 EMD BLADES 645 E
9518647 EMD BLADE
9518760 EMD DIFFUSER 18.5 SQ IN 645
9526418 EMD TURBINE WHEEL 710 16 CYL
9526453 EMD SHAFT-SUN GEAR
9526887 EMD WASHER HEAT DAM 710
9526933 EMD SPACER THRUST COLLAR
9527502 EMD HOUSING TURBO MAIN (MACHINED)
9527758 EMD COMPRESSOR LABYRINTH SEAL 710
9527841 EMD CARRIER SEAL RING 710
9527883 EMD RETAINER, SPLIT RING
9528216 EMD IMPELLER SEAL
9528217 EMD SPACER IMPELLER
9528223 EMD TURBOCHARGER, EMD 645 E3C, F3B
9528224 EMD BALANCING ASSEMBLY (EMD645 E3C ROTOR)
9528366 EMD OIL SEAL
9528521 EMD TURBO BRG SUPPORT-MACHINED
9528553 EMD STUB SHAFT IDLER GEAR 710
9528663 EMD LINK, UPPER AND LOWER
9528664 EMD CLEVIS, COMP. BRG. SUPPORT
9528713 EMD RETAINER PLATE ASSY
9528876 EMD GEAR TURBO IDLER
9528974 EMD SUPPORT IDLER GEAR
9529830 EMD EXHAUST DUCT, MACHINED
9531360 EMD SUPPORT ASSY INLET SCROLL (WITH KEY)
9531945 EMD RETAINING RING
9531951 EMD EMD 710 TURBO BEARINGS. SLEEVE,THRUST
9534179 EMD OIL DEFLECTOR
9534379 EMD STUBSHAFT
9534594 EMD RING GEAR PLANETARY
9534827 EMD RETAINER, CAMPLATE
9534828 EMD CLUTCH SUPPORT 710
9534855 EMD RING RETAINING
9534857 EMD CAMPLATE, MODEL 710
9538549 EMD TURBINE WHEEL ASSEMBLY
9538682 EMD RETAINER PLATE
9540690 EMD COMPR BEARING SUPPORT
9540816 EMD SLEEVE, THRUST
9544046 EMD THRUST COLLAR
9544888 EMD CLUTCH ROLLER WITHOUT RING GEAR
9568347 EMD TURBINE WHEEL ASSY 710
9570592 EMD GASKET CLUTCH TO BEARING SUPPORT
9570608 EMD GASKET 3/64"" HEAD FRAME (OUTER, 12 CYLINDER)
9570629 EMD GASKET 1/32"" AUX. GEN. DRIVE
9570679 EMD GASKET 1/16"" PIPING REPLACES 8366787
9570688 EMD GASKET, #7500 1/32"" CAMSHAFT DRIVE HSG.
9570765 EMD GASKET, #8310 1/8"" LUBE OIL SYSTEM REPLACEMENT, OPTIMIZED
9570778 EMD 9570778 GASKET, #7500 1/32"" LUBE OIL SYSTEM
9570843 EMD GASKET 3/64"" HEAD FRAM (INNER, 12 CYLINDER)
9571073 EMD GASKET #7500 1/16"" LUB. WICK ASSEMBLY
9571079 EMD GASKET #N8090 1/32"" TRACTION MOTOR
9571082 EMD GASKET N8090 1/32"" TRACTION MOTOR
9571085 EMD GASKET #N8090 1/32"" TRACTION MOTOR
9571650 EMD GASKET 1/32"" LUBE OIL PIPING
9572073 EMD GASKET #7500 1/64""AIR COMPRESSOR REPLACEMENT
9572091 EMD GASKET #7500 1/32""AIR COMPRESSOR
9579526 EMD SPIRATUALIC SEAL
9580694 EMD GASKET KIT, ENGINE BLOWER 567
9580717 EMD GASKET KIT, LUBE OIL SEPARATOR REPLACEMENT
9580730 EMD KIT GASKET TURBO
9580759 EMD OVERHAUL GASKET
9580777 EMD GASKET KIT
9581769 EMD SEAL
9582482 EMD GASKET KIT POWER ASSEMBLY INSTALLATION
40000027 EMD 710 IMPELLER 16 CYL
40001038 EMD UPPER IDLER GEAR ASSEMBLY
40008124 EMD COVER PLATE, IDLER GEAR SUPPORT
40010542 EMD GASKET 1/16"" COOLING SYSTEM
40010838 EMD GASKET 1/16"" COOLING SYSTEM
40015822 EMD BEARING
40021527 EMD COMPRESSOR SEAL EMD710
40022595 EMD TURBINE BLADE 710
40024939 EMD GASKET, #7500 1/32"" OIL PAN ASSEMBLY
40024940 EMD GASKET #7500 1/16"" LUBE OIL STRAINER
40025360 EMD SLEEVE COMPRESSOR RETAINER
40034114 EMD TABLCOK EMD710
40039278 EMD GASKET #7500 1/32""
40039280 EMD GASKET #8310 1/8"" INJECTOR CONTROL LINKAGE
40040022 EMD GASKET REPLACES 8028239
40040026 EMD GASKET 1/32"" AUX. GEN.DRIVE REPLACES 8081365
40040029 EMD GASKET #7500 1/32"" REPLACES 9529801
40040951 EMD GASKET, #7500 1/16"" LUBE OIL SEPARATOR
40042486 EMD INSTALLATION GASKET SET
40045525 EMD SEAL RING
40045696 EMD CAMPLATE CLUTCH
40048964 EMD GASKET, #7500 1/32"" LUBE OIL SYSTEM
40048966 EMD GASKET #7500 1/32"" LUBE OIL SYSTEM
40049152 EMD SLEEVE THRUST
40049152 EMD THRUST BEARING EMD710
40049311 EMD SLEEVE,COMPRESSOR JOURNAL
40050778 EMD GASKET #7500 1/32""INTERCOOLER SYSTEM
40051266 EMD DIFFUSER EXHAUST
40052311 EMD GASKET KIT, TURBOCHARGER CHANGEOUT (710 G3 ENGINE)
40052486 EMD GASKET #9960 1/16"" TURBOCHARGER, EXHAUST DUCT RETAINING RING
40053137 EMD SLEEVE PLANETARY
40053528 EMD COVER IMPELLER
40055466 EMD GASKET
40059346 EMD GASKET KIT, LUBE OIL SCAVENGING PUMP (567)
40061562 EMD BEARING
40061567 EMD SLEEVE, COMPRESSOR SPHERICAL
40069394 EMD GASKET, #7500 1/16"
40110618 EMD O-RING VITON
8306950- EMD SHAFT...GEAR
8316301RM EMD CASTING FOR BLADES
8366274/9585247 EMD MACHINE COMPL. SUPP CLUTCH STD
8421487/9540817 EMD BEARING PLANETARY
8441777/8291326 EMD SEAL RING EXHAUT
8455665/8455844 EMD MAIN BEARING OUTER
8455666/8455862 EMD MAIN BEARING INTER
8455667/8455850 EMD MAIN BEARING CENTRE
8455668/8455856 EMD MAIN BEARING INTER NARROW.
8455844/8455665 EMD MAIN BEARING OUTER
8455850/8455667 EMD MAIN BEARING CENTRE
8455856/8455668 EMD MAIN BEARING INTER NARROW
8455862/8455666 EMD MAIN BEARING INTER
8460300/8289807 EMD CARRIER SEAL RING 645, ALSO 8289807
9540818/8329451 EMD SEAL SPHER THRUST BEARING
9543882/9543944 EMD MAIN BEARING INTER
9543889/9543950 EMD MAIN BEARING GENERATOR END
9543895/9543956 EMD MAIN BEARING CENTRE
9543944/9543882 EMD MAIN BEARING INTER
9543950/9543889 EMD MAIN BEARING GENERATOR END
9543956/9543895 EMD MAIN BEARING CENTRE
9574404/8421758 EMD SLEEVE,TURBINE
emd parts
emd turbochargerppartsarts
emd turbochargerparts
emd machine shaft sun gear std
emd support turbine inlet duct
emd support 645
emd turbochargerparts
emd support 645
emd turbochargerparts
emd turbochargerparts
emd machine comp supp clutch
emd turbochargerparts
emd idler shaft
emd turbochargerparts
emd shroud ring
emd turbine wheel
emd seal impeller 710
emd link upper and lower
emd parts
emd clutch support
emd turbine wheel assembly
emd turbocharger
emd shaft sun gear
